Automatic Product Sorting Metal & Non Metal Detection & Counting.

Introduction

The sorting of materials in garbage industries square measure created manually at this time days. There could also be likelihood of errors in sorting. We’ve enforced an answer for substitution human by automatic management while not manual power. The project detects the objects completely different of various} materials and segregate in 3 different boxes. By usage of sensors decreases the errors in sorting and reduces the person power. The projected system involves detector, IR sensor, mini limit switch for sensing weight and for sorting purpose linear motion electrical actuators square measure used. The motor shaft is connected to the roller and also the conveyor belt is placed on the roller these provides sensible tension over the belt. The conveyor motors input gets from electrical device.

Working Principle

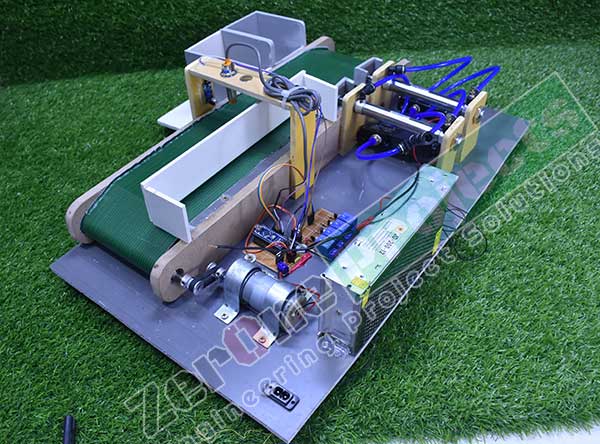

Our project is designed to separate metal non-metal objects. We are using Arduino Nano for controlling our project, which is acting as the main controller here. Also used here sensors, relays, valves, motors and air cylinders. Everything comes connected with Arduino.Here the current from AC is entering the circuit at 12 volts via SMPS. The Arduino Nano is equipped with two sensors. They are proximity sensor and IR Sensor .This proximity sensor and IR sensor are useful for sensing the product. The IR sensor senses the object and the proximity sensor detects whether it is metal or not. If the conveyor belt rotates, the belt will stop when the object comes in front of the IR sensor. Then check the object, if it is metal then a Pneumatic cylinder will push it in a specific box. In this way we can easily distinguish between metal and non-metal objects in this machine.

Components List:

1. DC Gear Motor.

2. IR Sensor.

3. Proximity Sensor.

4. Air Cylinder.

5. Air Compressor.

6. SMPS

7. Relay

8. Pneumatic Solenoid Valve .

9. Arduino Nano .

 Advantages

• Good accuracy to find metal and non-metal object.

• Time saving machine for industrial work.

• Very effectively work for product peak and place.

• Reduce energy waste.

• No Oil consumption.

• Less skill technicians is sufficient to operate.

• Installation is simplified very much.

• Less time and more profit.

• Simple construction

• Reduced weight of the system.

• Ease of operation.

 Applications

The project has a major application in the

• It can be used for Industrial work.

• It can be used in factories for peak and place.

• It can be used in pharmacy.

• It can be used for metal no-metal separator.
