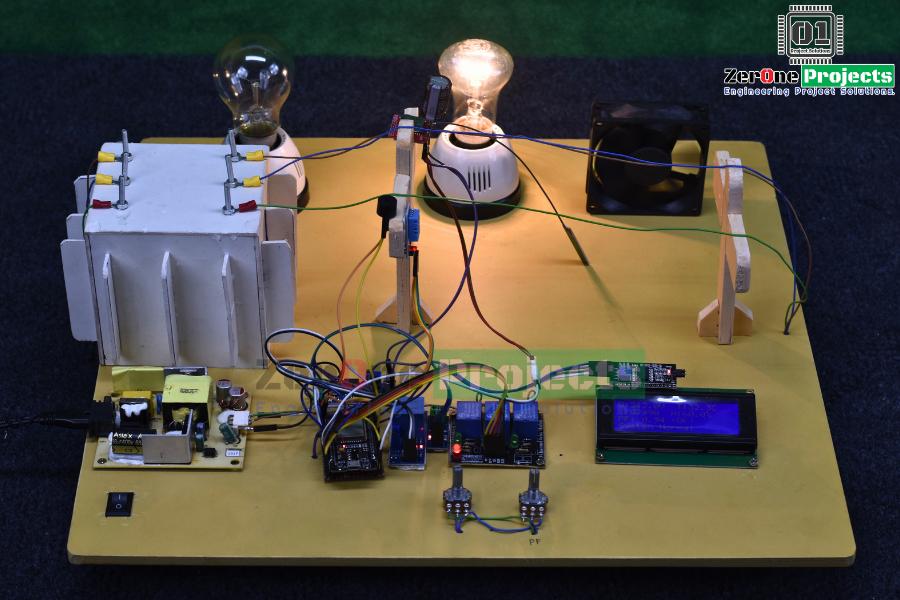

#AIOT065 𝐈𝐨𝐓 𝐁𝐚𝐬𝐞𝐝 𝐒𝐦𝐚𝐫𝐭 𝐄𝐥𝐞𝐜𝐭𝐫𝐢𝐜𝐚𝐥 𝐏𝐫𝐨𝐭𝐞𝐜𝐭𝐢𝐨𝐧 𝐚𝐧𝐝 𝐌𝐨𝐧𝐢𝐭𝐨𝐫𝐢𝐧𝐠 𝐒𝐲𝐬𝐭𝐞𝐦

𝐈𝐨𝐓 𝐁𝐚𝐬𝐞𝐝 𝐒𝐦𝐚𝐫𝐭 𝐄𝐥𝐞𝐜𝐭𝐫𝐢𝐜𝐚𝐥 𝐏𝐫𝐨𝐭𝐞𝐜𝐭𝐢𝐨𝐧 𝐚𝐧𝐝 𝐌𝐨𝐧𝐢𝐭𝐨𝐫𝐢𝐧𝐠 𝐒𝐲𝐬𝐭𝐞𝐦

Project Fee:Negotiable

Project Discount:0

Project Duration:One Month

𝐈𝐨𝐓 𝐁𝐚𝐬𝐞𝐝 𝐒𝐦𝐚𝐫𝐭 𝐄𝐥𝐞𝐜𝐭𝐫𝐢𝐜𝐚𝐥 𝐏𝐫𝐨𝐭𝐞𝐜𝐭𝐢𝐨𝐧 𝐚𝐧𝐝 𝐌𝐨𝐧𝐢𝐭𝐨𝐫𝐢𝐧𝐠 𝐒𝐲𝐬𝐭𝐞𝐦

1. Introduction

The IoT Based Smart Electrical Protection and Monitoring System is designed to improve electrical safety through real-time monitoring and automatic fault detection. The system monitors important electrical parameters and uses a microcontroller to identify abnormal conditions, activate protective measures, and provide updates through an IoT platform.

2. Objectives

  • Monitor voltage, current, and power consumption.

  • Detect overload and abnormal electrical conditions.

  • Provide automatic protection against electrical faults.

  • Enable remote monitoring through IoT.

  • Improve electrical safety and energy management.

  • Reduce the risk of equipment damage.

3. Methodology

  • Connect voltage and current sensors to the monitoring circuit.

  • Use NodeMCU to collect and process electrical data.

  • Set suitable limits for detecting abnormal conditions.

  • Use a relay module to disconnect the load during detected faults.

  • Display electrical readings and fault status on an LCD or IoT dashboard.

  • Test the system under normal and simulated fault conditions.

4. Instrument List

  • NodeMCU ESP8266

  • Voltage Sensor

  • Current Sensor

  • Relay Module

  • LCD Display

  • Buzzer

  • AC Load

  • Circuit Breaker

  • Battery

  • Power Monitoring Module

5. Working Principle

  • Voltage and current sensors continuously measure the electrical parameters.

  • NodeMCU processes the sensor readings and compares them with predefined safety limits.

  • When an abnormal condition is detected, the controller activates the buzzer and relay.

  • The relay disconnects the load to help prevent equipment damage.

  • Electrical readings and fault notifications are displayed through the IoT monitoring platform.

  • The system continues monitoring to identify changes in electrical conditions.

6. Advantages

  • Real-time electrical monitoring

  • Automatic fault detection

  • Overload protection

  • Remote status monitoring

  • Improved equipment safety

  • Efficient energy management

7. Conclusion

The IoT Based Smart Electrical Protection and Monitoring System combines sensor technology, automatic control, and IoT monitoring to improve electrical safety. It can help detect abnormal operating conditions, disconnect affected loads, and provide timely alerts. Properly rated protection devices and safe electrical isolation are essential for practical implementation
