#EHD115 Wearable IMU Device

Wearable IMU Device

Project Fee:Negotiable

Project Discount:0

Project Duration:7 Days

Wearable IMU Device

1. Introduction

The Wearable IMU Device is designed to monitor human movement and body orientation using an Inertial Measurement Unit (IMU). By combining accelerometer and gyroscope sensors with a microcontroller, the device can track motion, posture, and physical activity in real time. It can be used in fitness monitoring, rehabilitation, sports analysis, and wearable motion-tracking applications.

2. Objectives

  • Monitor body movement and orientation.

  • Measure acceleration and angular velocity.

  • Track physical activity in real time.

  • Analyze posture and movement patterns.

  • Develop a compact and portable device.

  • Support motion analysis and activity monitoring.

3. Methodology

  • Connect an IMU sensor to a microcontroller.

  • Attach the device securely to the user's body.

  • Collect acceleration and angular velocity data.

  • Process sensor readings to estimate movement and orientation.

  • Display or transmit data through a connected monitoring interface.

  • Test the device during different movements and body positions.

4. Instrument List

  • ESP32 Development Board

  • MPU6050 IMU Sensor

  • OLED Display

  • Bluetooth Module

  • Vibration Motor

  • Rechargeable Battery

  • Voltage Regulator

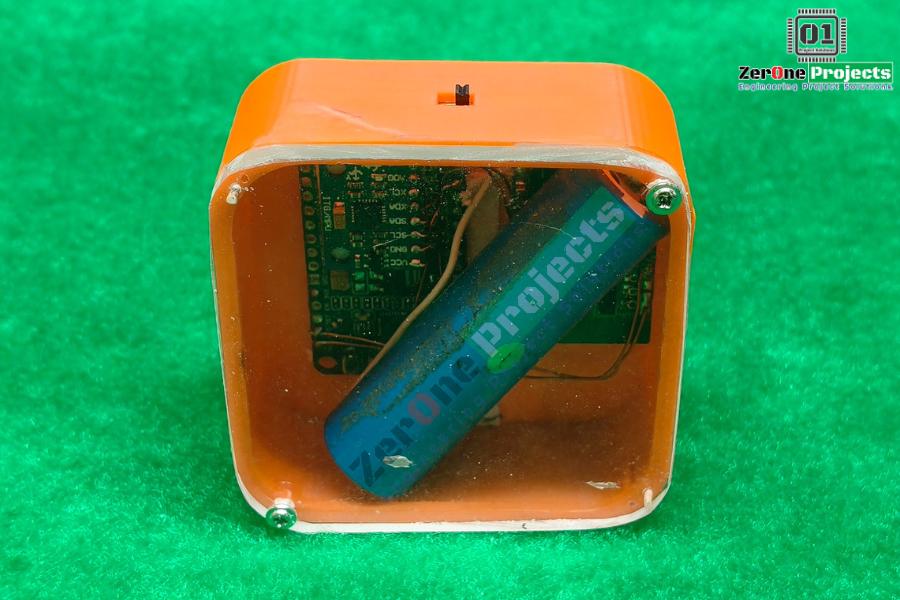

  • Wearable Enclosure

5. Working Principle

  • The accelerometer measures movement and linear acceleration.

  • The gyroscope measures angular velocity around different axes.

  • The ESP32 processes the sensor data to estimate movement and orientation.

  • The processed information is displayed on an OLED or transmitted wirelessly.

  • The vibration motor can provide feedback when programmed movement or posture limits are exceeded.

  • The system continuously updates motion data during operation.

6. Advantages

  • Real-time motion tracking

  • Compact wearable design

  • Wireless data transmission

  • Posture monitoring support

  • Physical activity analysis

  • Portable and rechargeable operation

7. Conclusion

The Wearable IMU Device demonstrates how inertial sensors and embedded technology can be used to monitor human movement and orientation. Its compact design and wireless data capabilities make it suitable for fitness tracking, rehabilitation research, and motion analysis. Accuracy depends on sensor calibration, placement, and the algorithms used to process movement data.
