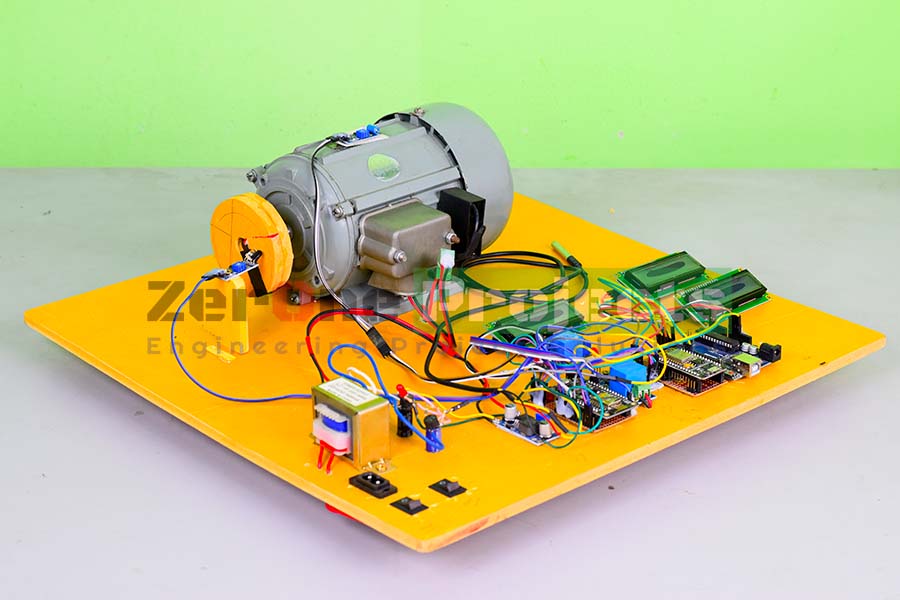

#MAP141 Fault Detection System Single phase induction Motor.

Fault Detection System Single phase induction Motor.

Project Fee:Negotiable

Project Discount:0

Project Duration:7 Days

1. Introduction

The Fault Detection System for a Single-Phase Induction Motor is designed to monitor motor operating conditions and identify abnormal situations during operation. By using electrical sensors and a control unit, the system can detect issues such as overcurrent, abnormal voltage, and overheating. This project aims to improve motor protection, reduce unexpected failures, and support reliable operation in domestic and industrial applications.

2. Objectives

  • Monitor single-phase induction motor operating conditions.

  • Detect overcurrent and abnormal voltage conditions.

  • Identify motor overheating.

  • Provide alerts when faults occur.

  • Disconnect the motor during unsafe conditions.

  • Improve motor safety and operational reliability.

3. Methodology

  • Connect voltage and current sensors to the motor monitoring circuit.

  • Install a temperature sensor near the motor body.

  • Collect and process sensor readings using a microcontroller.

  • Compare measurements with predefined safety limits.

  • Activate an alarm when abnormal conditions are detected.

  • Disconnect the motor through a properly rated relay or contactor when necessary.

4. Instrument List

  • Single-Phase Induction Motor

  • Arduino Uno

  • Voltage Sensor

  • Current Sensor

  • Temperature Sensor

  • Relay Module or Contactor

  • LCD Display

  • Buzzer

  • Circuit Breaker

  • Power Supply

  • Protection Enclosure

5. Working Principle

  • The voltage sensor monitors the motor's supply voltage.

  • The current sensor measures the current drawn during operation.

  • The temperature sensor monitors motor temperature.

  • The Arduino processes the measurements and compares them with configured limits.

  • When a fault condition is detected, the system activates the buzzer and displays the fault status.

  • The control circuit disconnects the motor when necessary to help prevent damage.

6. Advantages

  • Enables continuous motor condition monitoring.

  • Detects selected electrical and thermal faults.

  • Provides automatic fault alerts.

  • Helps reduce unexpected motor damage.

  • Improves operational safety.

  • Supports preventive maintenance.

7. Conclusion

The Fault Detection System for a Single-Phase Induction Motor provides a practical approach to monitoring motor conditions and identifying selected faults. By combining sensor-based monitoring, alerts, and automatic disconnection, the system can help improve motor protection and reliability. Further development using vibration sensing, phase-related diagnostics where applicable, and data logging can expand its fault detection capabilities. Properly rated electrical protection and safe isolation are essential for real-world implementation
