Introduction

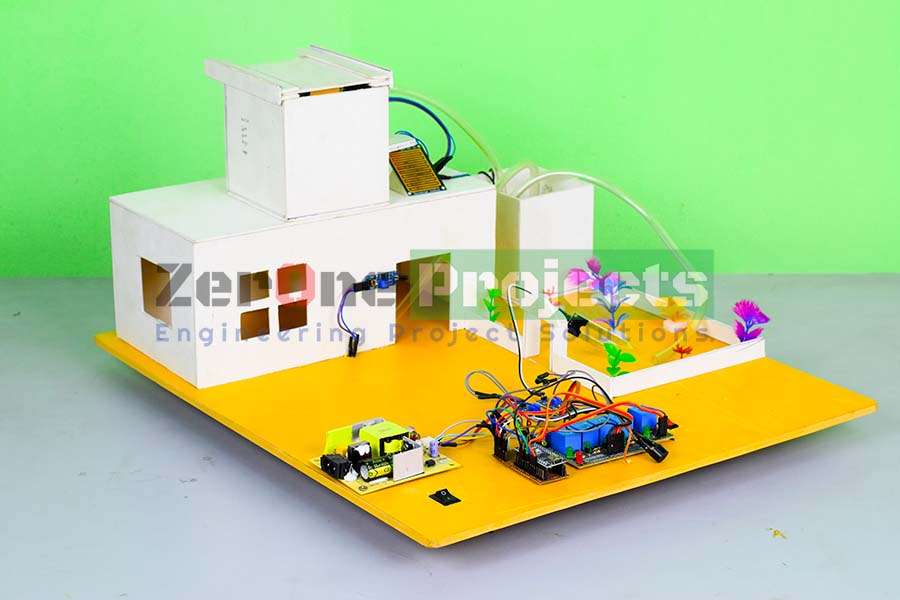

The Rainwater Harvesting Using Arduino project is designed to collect and manage rainwater efficiently with the help of sensors and an automatic control system. Arduino monitors rainfall and water storage levels to support controlled collection, prevent tank overflow, and reduce water wastage. The system promotes sustainable water management for households, agriculture, and other applications.

 Objectives

• Collect and store rainwater efficiently.

• Monitor rainfall and tank water levels.

• Prevent water tank overflow automatically.

• Control water flow using sensors.

• Reduce dependence on conventional water sources.

• Promote sustainable water conservation.

 Methodology

• Collect rainwater through a rooftop or collection surface.

• Direct the water through a filter to remove debris.

• Use a rain sensor to detect rainfall.

• Monitor the storage tank level using a water-level sensor.

• Process sensor readings through Arduino.

• Control a valve or pump to manage water collection and storage.

 Instrument List

• Arduino Uno

• Rain Sensor

• Ultrasonic Sensor or Water-Level Sensor

• Relay Module

• DC Water Pump

• Solenoid Valve

• Water Storage Tank

• Rainwater Collection Pipe

• Filtration Unit

• LCD Display

• Battery

 Working Principle

• Rainwater flows from the collection surface into the harvesting system.

• The filtration unit removes leaves and larger particles before storage.

• The rain sensor detects rainfall and sends a signal to Arduino.

• The water-level sensor measures the amount of water stored in the tank.

• Arduino processes the sensor readings and controls the pump or valve as required.

• When the tank reaches its maximum level, the system stops water inflow or redirects excess water to prevent overflow.

Advantages

• Supports efficient rainwater collection.

• Reduces water wastage.

• Prevents storage tank overflow.

• Enables automatic water-level monitoring.

• Helps conserve water resources.

• Suitable for homes and agricultural use.

 Conclusion

The Rainwater Harvesting Using Arduino project combines rainwater collection, filtration, and sensor-based control to improve water management. Automatic monitoring helps manage storage capacity and reduce overflow, making the system useful for domestic and agricultural applications. With suitable filtration, regular maintenance, and appropriate storage, the system can contribute to sustainable water conservation. Harvested water should be treated and tested before drinking.
