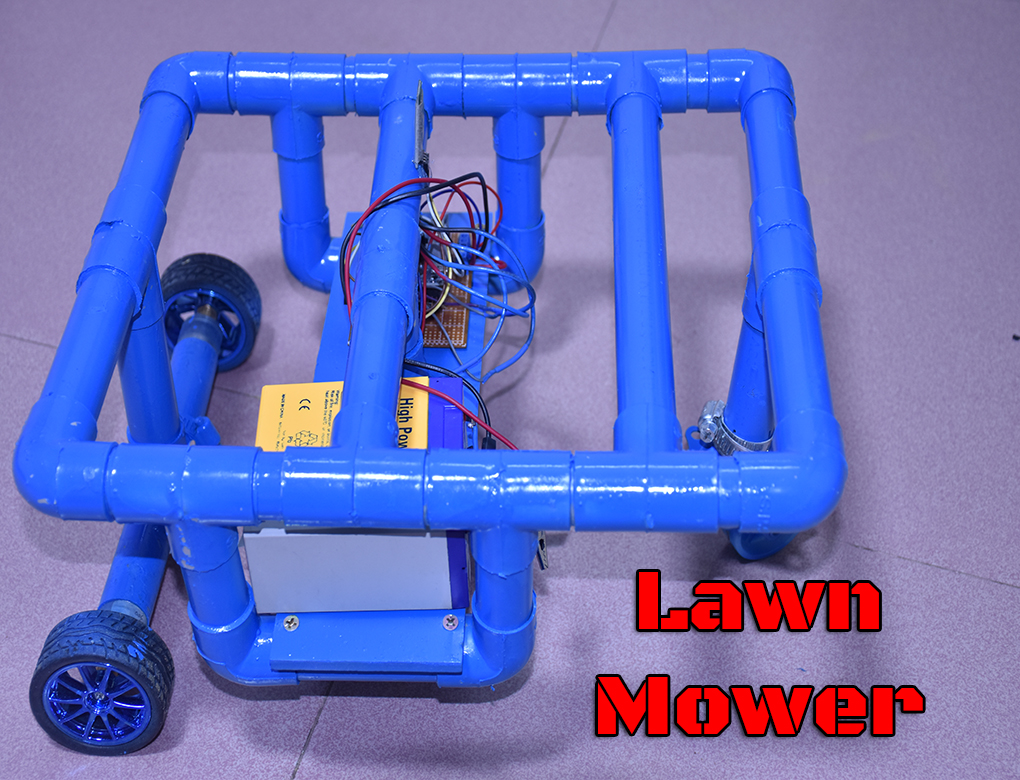

 Android Controlled Lawn Mower

Required Instruments:

Sl.No.	Required Instruments	Specifications	Quantity
	Arduino Nano	Atmega328P	1
	Bluetooth Module	HC-05	1
	Battery	6 Volt	1
	Motor Driver	L293D	1
	Relay	5 Volt 10 A	1
	Transistor	BC547	1
	Resistor	1k	1
	PVC Pipe	8 CM	8
		13 CM	4
		10 CM	2
		18 CM	4
		30CM	10
		PVC T Angele	12
		PVC Albo	8
		Still Tie	4

Apps Link:

https://play.google.com/store/apps/details?id=nextprototypes.BTSerialController&hl=en

Code:

String voice;

int

motor1 = 3,

motor2 = 4,

motor3 = 5,

motor4 = 6,

relay = 2;

void setup() {

  Serial.begin(9600);

  pinMode(motor1, OUTPUT);

  pinMode(motor2, OUTPUT);

  pinMode(motor3, OUTPUT);

  pinMode(motor4, OUTPUT);

  pinMode(relay, OUTPUT);

}

void loop() {

  while (Serial.available()){

  delay(10);

  char c = Serial.read();

  if (c == '#') {break;}

  voice += c;

  }

if (voice.length() > 0){

  Serial.println(voice);

 // Serial.println();

   if (voice == "F")

               {

                // ll=1;

analogWrite(motor1,255);

digitalWrite(motor2,LOW);

analogWrite(motor3,255);

digitalWrite(motor4,LOW);

               }

else if (voice == "B" )

               {

                 //ll=0;

digitalWrite(motor1,LOW);

analogWrite(motor2,255);

digitalWrite(motor3,LOW);

analogWrite(motor4,255);

               }

else  if (voice == "L")

               {

analogWrite(motor1,255);

digitalWrite(motor2,LOW);

digitalWrite(motor3,LOW);

digitalWrite(motor4,LOW);

               }

else  if (voice == "R")

               {

              //   ll=0;

digitalWrite(motor1,LOW);

digitalWrite(motor2,LOW);

analogWrite(motor3,255);

digitalWrite(motor4,LOW);

               }

else  if (voice == "S")

{

       digitalWrite(motor1,LOW);

      digitalWrite(motor2,LOW);

     digitalWrite(motor3,LOW);

     digitalWrite(motor4,LOW);

}

 else  if (voice == "x")

{

digitalWrite(relay,LOW);

}

else  if (voice == "y")

{

digitalWrite(relay,HIGH);

}

}

voice="";

}
