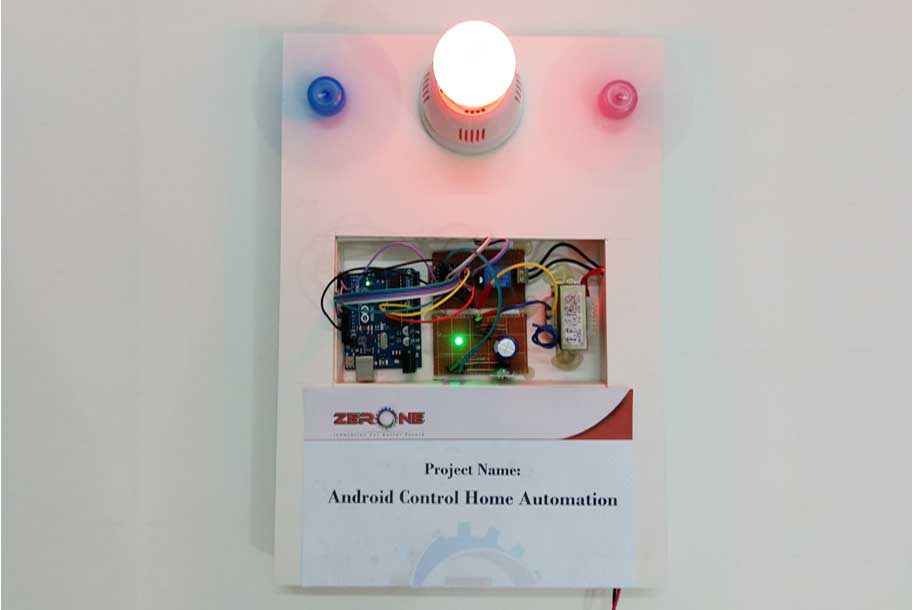

#CMP464 Android App Based Wireless Communication Home Automation.

In This project is to make an android controlled Home Automation. It will help in building an android controlled Home appliances without any experience in android app development by providing the free android app. This app consists of touch controlling interface of Home appliances.

Project Fee:Negotiable

Project Discount:0

Project Duration:One Month

Android App Based Wireless Communication Home Automation.

About This Project:

In This project is to make an android controlled Home Automation. It will help in building an android controlled Home appliances without any experience in android app development by providing the free android app. This app consists of touch controlling interface of Home appliances. This Project includes two distinct parts, hardware control circuit and the android application. The communication between the Control circuit and the android application is carried over by the Bluetooth link between the phone’s Bluetooth and the Bluetooth device in the control circuit. The ASCII commands are sent from the phone to the Robot which in turn checked by the Arduino for the turning ON or OFF of the particular device. This project helps to control the electrical loads with the help of android application. The electrical loads are controlled based on Bluetooth input signal. This input signal is received from the android device. Many times it becomes too tiring to operate the electrical switches manually every now and then. This is a big problem especially in case of aged or handicapped people. This system solves the issue by interfacing a unit with home appliances that switches these loads based on the input received from android device. The android device may be any android based phone or tab having an android OS. The app also provides an effective GUI for providing this functionality. An Arduino is used in this system. The Bluetooth receiver is interfaced with microcontroller in order to accept the commands and then react accordingly. It operates the loads through a set of relays using a relay module. Relays are used between loads and the control unit. This system proves to be very beneficial for controlling various domestic applications and in industrial setups. The power supply setup of the system contains a step down transformer of 230/12V, used to step down the voltage to 12VAC. To convert it to DC, a bridge rectifier is used. In order to remove the ripples, a capacitive filter is used and it makes use of 7805 voltage regulator to regulate it to +5V that will be needed for microcontroller and other components operation.

Block Diagram:


Figure: Block Diagram of Android App Based Wireless Communication Home Automation.

Required Instrument:

-        Arduino.

-        Bluetooth Module HC-05.

-        Relay.

-        Transistor.

-        Voltage Regulator IC7805.

-        Transformer.

-        Diode.

-        Capacitor.

-        Voltage Regulator.



Advantages:

-        Provides safety from electrical power short circuits while using conventional wall switches to operate loads.

-        Home automation system Provides many facilitates & more security.

-        Save a lot of time to operate from remotely without wasting time.

-        Fan, Door Lock, Light, & Switch can be operated.

-        Prevents wastage of energy.

-        No need to carry separate remote or any other controlling unit.



Applications:

-        Home Automation – This project can be used to control various Home Appliances.
